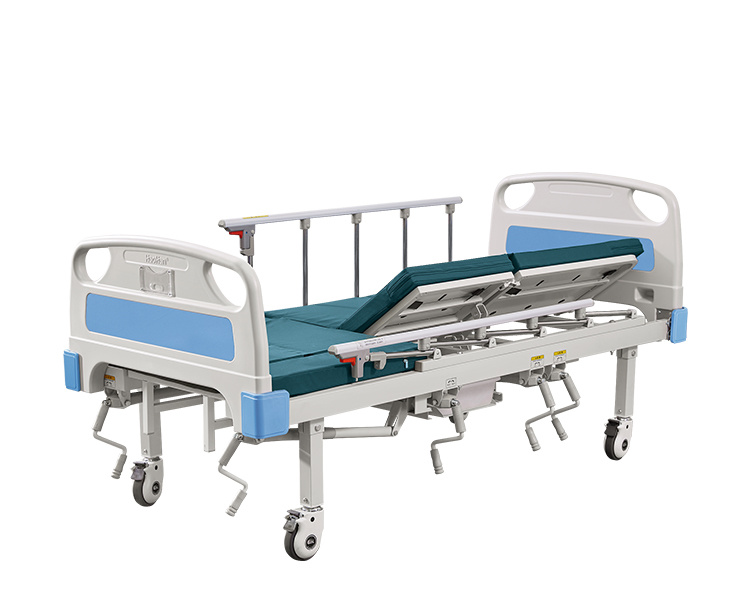

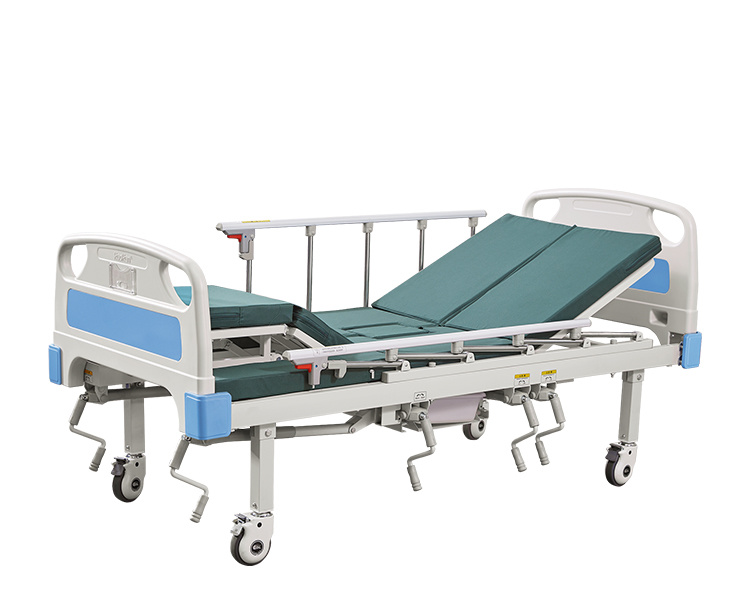

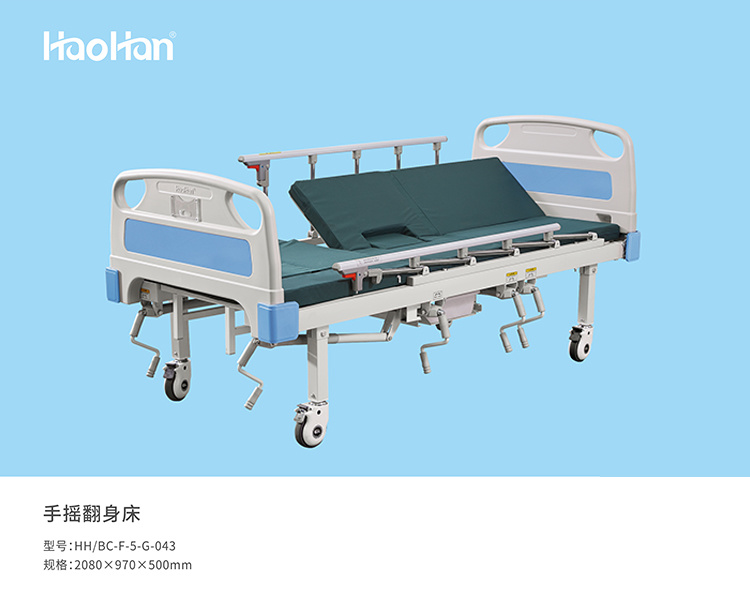

043 Hand crank over bed
Category： Nursing Bed
Summary： 100% of the metal parts of the whole bed are subjected to high-precision robot welding processMessage
whole bed metal parts are 100% applied to high-precision robot welding process, and the hospital bed is safe and reliable.
2. The bed panel adopts carbon steel cold-rolled plate as a whole and is stretched and formed at one time, and the bed plate has a stronger bearing capacity.
3. The back section lifting structure adopts double-arm horizontal sliding shaft and double-support arm unloading structure, which disperses the back load-bearing capacity and reduces the deformation of the back plate when the load is not uniform.4. When the bed surface of the back segment is raised to the highest position, and the
leg plate and foot section bed surface are lowered to the lowest position, this bed has the function of a seat
5. The overall metal of the bed adopts electrophoresis plus electrostatic powder spraying double coating technology, so that it is resistant to acid and alkali, corrosion resistance, fading resistance, strong scratch resistance, and double coating inside and outside the pipe wall to prevent rust and prolong the service life of the bed.
6. The bedside locking structure adopts hanging mortise and symmetrical quick hanging seat, which is convenient for quick installation or removal.
7. The foot of the bed is equipped with four single-brake casters, and the casters have two functions of full freedom and full locking.
Keywords：043 Hand crank over bed
